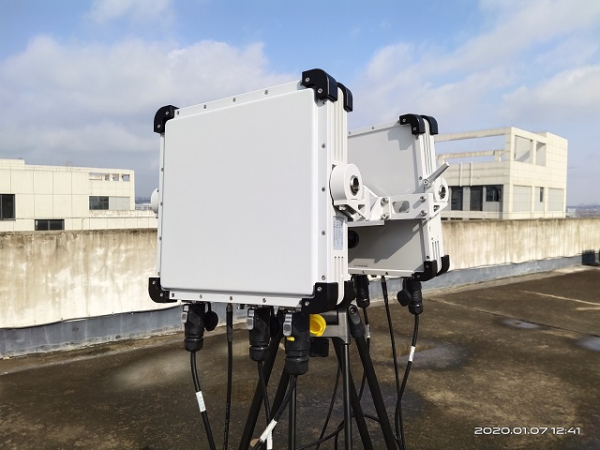

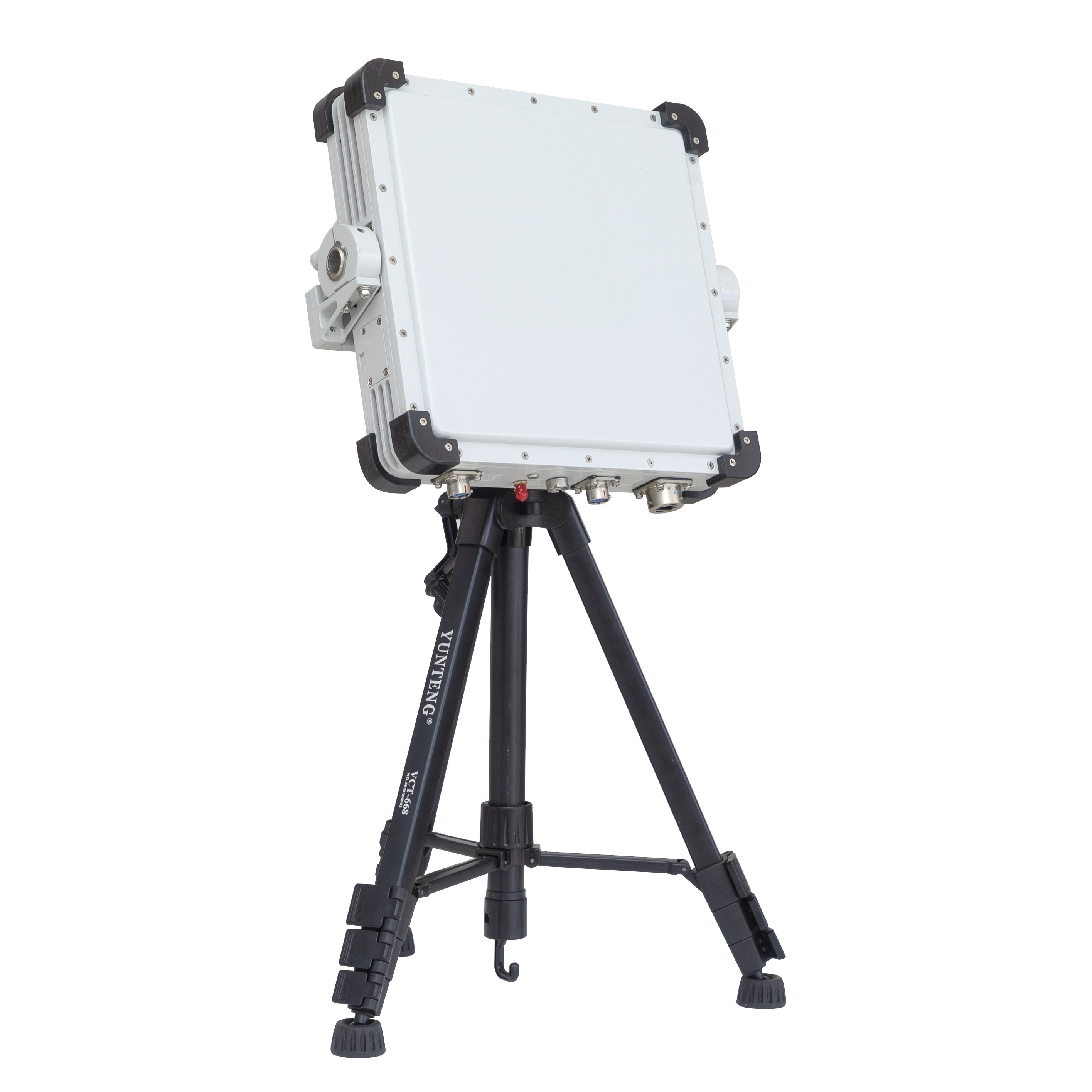

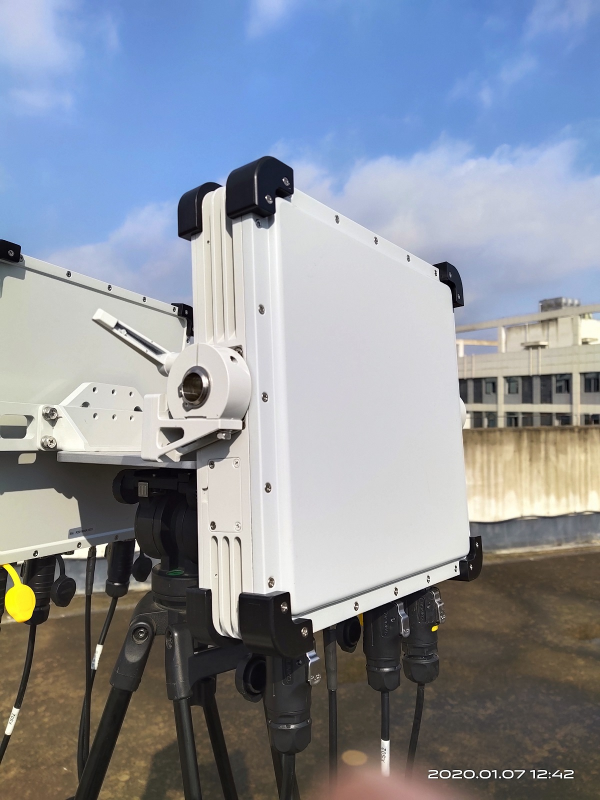

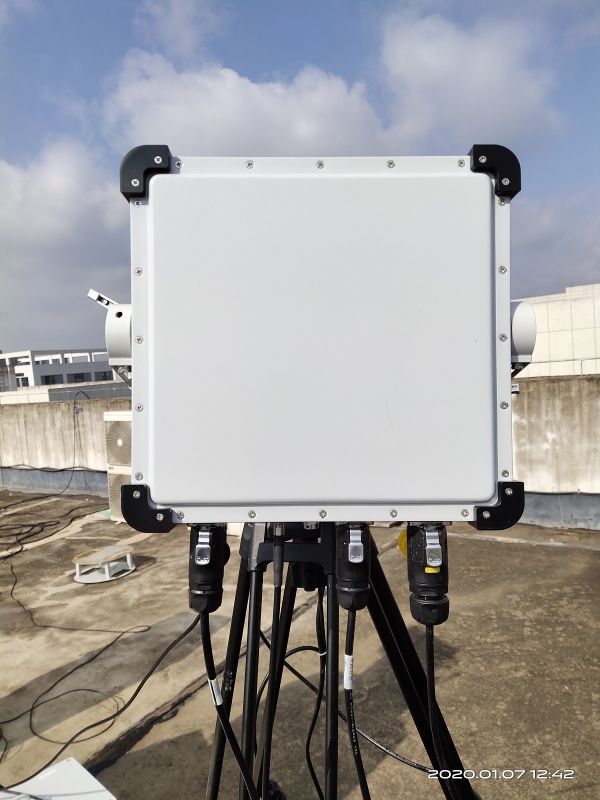

GRB 101 -1C provides state-of-the-art protection for the airfield and ground, and is a C-band working radar, mainly used to detect and track ground targets, to immediately report the position and coordinate information of targets and quickly make disposal plans for threates.
Features
-- High data rate and high positioning accuracy
-- Multi-Input Multi-Output (MIMO) system
-- All-weather adaptability
Application
Checkpoint, prison, reservoir, perimeter, oil field, etc.
Specification
|
Item |
Specification |
|
Working mode |
Phased array + Pulse Doppler |
|
Working frequency |
C band (5.5-5.8GHz) |
|
Detection range |
1.5km (Pedestrians) 3km (Vehicles) |
|
Minimum detection range |
≤100m |
|
Azimuth coverage |
Single panel：90° ( Dual panel:180°, 3-panel:270°, 4-panel:360°) |
|
Elevation coverage |
18° |
|
Distance accuracy |
≤10m |
|
Azimuth Accuracy |
≤1.0° |
|
Target detection speed |
0.2m/s - 30m/s |
|
Speed precision |
≤0.2m/s |
|
Data rate |
≤1.5s |
|
Net weight |
≤3.8kg |
|
Power supply |
AC220V/DC12V(External Battery)/35W |
|
Interface |
Ethernet (UDP protocol) |
|
Dimension |
324mm x 295mm x 92mm |
|
Working temperature |
-40 ℃ ~ +60 ℃ |
|
Working Environment |
Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof |
