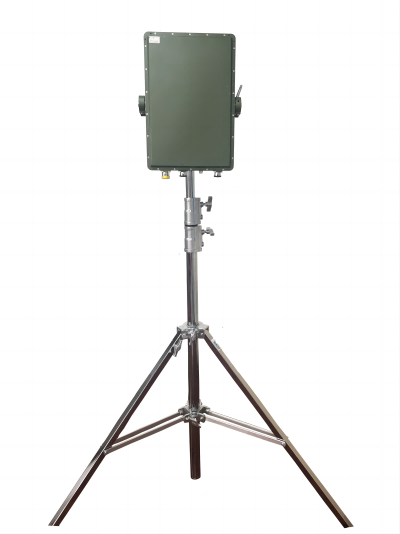

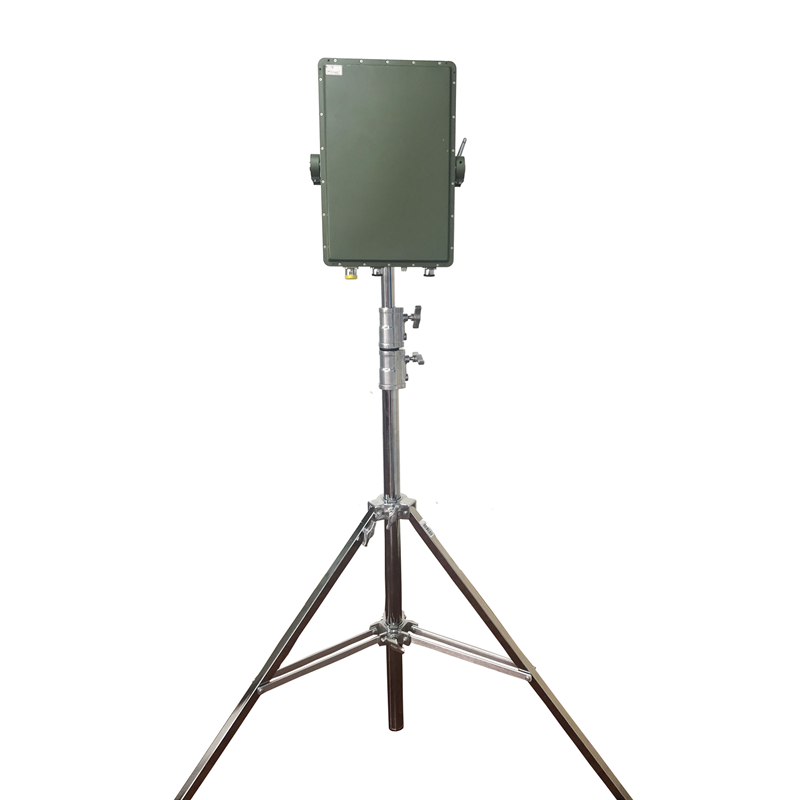

GSR 215-1C is a phased array radar with advanced technology and stable performance to realize the detection of moving targets on the ground.
Features
-- High data rate and high positioning accuracy
-- Multi-Input Multi-Output (MIMO) system
-- All-weather adaptability
Application
Border, oil field, prison and other key areas security surveillance.
Specification
|
Item |
Specification |
|
Working mode |
Phased array + Pulse Doppler |
|
Working frequency |
C band (5.5-5.8GHz) |
|
Detection range |
2.5km (Pedestrians) 5km (Vehicles) |
|
Minimum detection range |
≤100m |
|
Azimuth coverage |
Single panel: 90° (Dual panel:180°, 3-panel:270°, 4-panel:360°) |
|
Elevation coverage |
9° |
|
Distance accuracy |
≤10m |
|
Azimuth Accuracy |
≤1.0° |
|
Target detection speed |
0.2m/s - 30m/s |
|
Speed precision |
≤0.2m/s |
|
Data rate |
≤1.5s |
|
Net weight |
≤4.8kg |
|
Power supply |
AC220V/40W (Single panel) |
|
Interface |
Ethernet (UDP protocol) |
|
Dimension |
432mm x324mm x 79mm |
|
Working temperature |
-40 ℃ ~ +60 ℃ |
|
Working Environment |
Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof and Salt-proof |
